Description

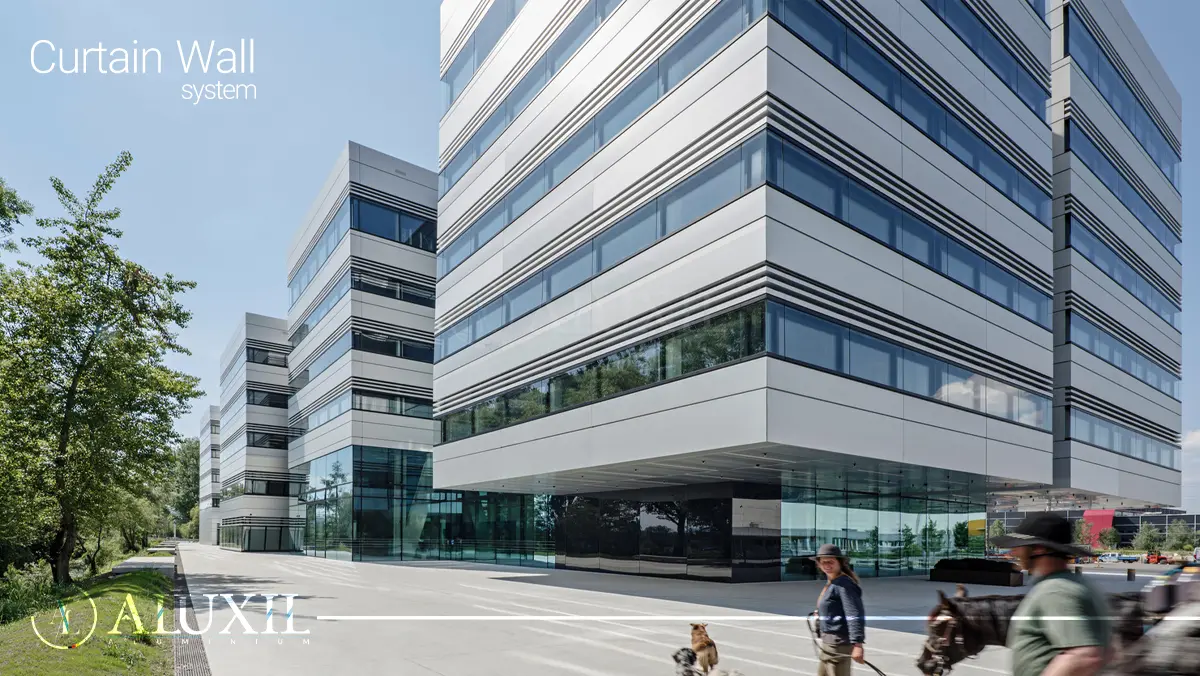

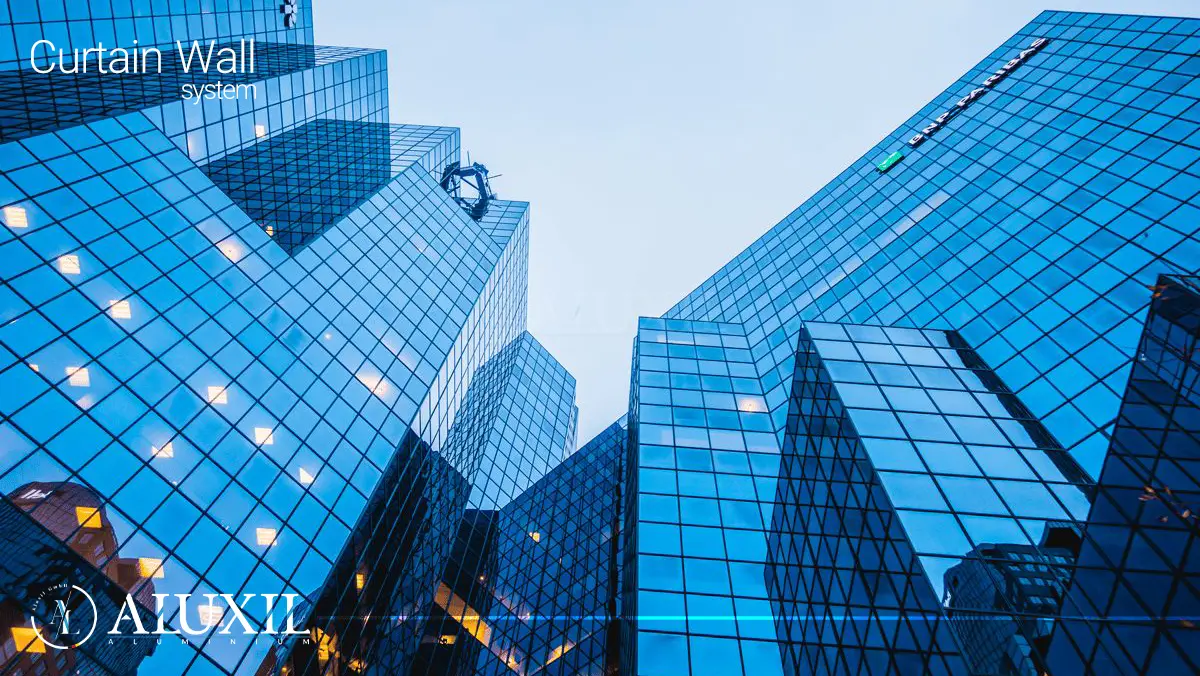

Curtain Wall System

Caped System

Maximum height of Mullion: 180 mm
Minimum height of Mullion: 50 mm
Maximum height of Transom: 162 mm
Minimum height of Transom: 35 mm
Width of Mullion and Transom: 50 & 51 mm
Wall thickness: 1.5 – 2.5 mm
Glass thickness: 6 to 50 mm
Thermal Conductivity: Uf: 4.60 w/m2k
EPDM identification and sealing gaskets
Type of opening: Turn – Tilt and Turn – French – parallel – friction
